Class Features
Overview
Within the definition of each class in a BMM model are found the declarations of its features. Variables are declared within routines. Features and variables are kinds of formal elements, i.e. typed entities having a signature (BMM_FORMAL_ELEMENT). This section describes class features, their parts, and their semantics.
Feature Taxonomy
Features are understood in BMM as typed entities referenceable within a module context. Class features consist of the formal sub-parts of a class, namely:
-
routines: procedures and functions;
-
properties: mutable static definitions, described in detail in previous sections;
-
constants: immutable static values.
The taxonomy of feature declarations is shown below in the simplified view of the BMM feature meta-model.
Feature Groups and Visibility
Features are arranged within a class in feature groups, each represented by an instance of a meta-type BMM_FEATURE_GROUP, shown in the following UML view.
By default there is at least one feature group called "feature". Feature groups may be given any name, and are usually used to group features on the basis of things like:
-
meta-type, e.g. a group called
"rules"limited to publicly visible functions only; -
logical feature type, e.g. commands, queries, factory methods etc.
The primary purpose of feature groups is to represent specific meta-data that naturally applies to more than one feature in general, and is thus convenient to represent on a logical container rather than repeat individually. Feature group meta-data is recorded in the properties attribute. A feature group may also set default visibility for all features in the group.
Selective visibility of features to external clients is expressed in the attributes BMM_FEATURE_GROUP.visibility with potential overrides achieved using BMM_FEATURE.visibility, i.e. at an individual feature level. Visibility is defined using sub-types of the abstract meta-class BMM_VISIBILITY.
TBD: define visibility meta-model; probably need to support C++/Java approach and type-based.
Differential and Flat Form
In modelling or programming terms, the features defined on a particular class within a model constitute the features it introduces with respect to its inheritance parent(s). We can think of this list of features as the differential set. A 'top-level' class with no declared inheritance ancestor is considered to inherit by default from the Any class, and its feature set is relationally differential to the top class.
In contrast, the effective set of features for an instance at runtime is the result of evaluating these lists of features down the inheritance hierarchy to obtain the flat set of features. The features properties and flat_properties defined on BMM_CLASS provide access to these two lists for any class.
Signatures
All features are formal computational entities, and therefore have formal signatures (described in [Signature Meta-type]), represented by BMM_FORMAL_ELEMENT.signature. A standard taxonomy of feature signature types is illustrated below, in which properties have signatures with no arguments (this is also true for argument-less functions), and procedures have the special built-in Status result type (BMM_STATUS_TYPE), following the meta-model of various functional languages, e.g. Haskell (in which procedure invocations return the special 'unit' type).
Synthesis due to Generic Parameter Substitution
Due to the possibility of generating concrete types via substitution of concrete generic parameters for formal parameters of generic classes, new concrete types of features may routinely result anywhere in a fully computed in-memory BMM model. BMM allows such features to be synthesised with their resulting concrete types rather than their 'source-defined' open parameter types, and provides the Boolean flag is_synthesised_generic on BMM_FEATURE to mark any such synthesised feature. An example of the use of this is described below in [_generic_inheritance].
Properties
Properties are features whose values are stored rather than computed on each reference, and are represented by the meta-type BMM_INSTANTIABLE_FEATURE. They are distinguished from routines by having no arguments (signature of degree zero).
Static Properties
Static properties are properties whose values are pre-defined by some means, and read-only during execution (is_nullable is False).
Constants
Constant class features (meta-type BMM_CONSTANT) correspond to classic constants in most computer languages, and are defined with a literal value.
The following abstract syntax illustrates how constants may be defined in a BMM model.
class BASIC_DEFINITIONS
feature
//
// simple constants
//
constant CR: Character = '\015';
constant LF: Character = '\012';
//
// constant of complex type
// TODO: correct JSON (maybe YAML?) or other syntax
//
constant SafeSpeed: Interval<Quantity> = |0.0 km/h .. 60.0 km/h|;Singletons
The other kind of static property is computed once during execution (meta-type BMM_SINGLETON) via an argumentless function-body. Like a value-based constant, it has the same value for all instances of the containing type, including descendant and generically derived types.
The following illustrates how singletons may be defined in a BMM model.
feature
//
// constant generated by a function call
//
singleton criticalPressure: ProxyVar<Quantity>
Result := {ProxyVar<Quantity>}({Quantity}(0.0, "kPa"), {Quantity}(150.0, "kPa"));Writable Properties
Writable class properties are defined via the meta-class BMM_PROPERTY, and its subtypes which distinguish unitary properties (single-valued attributes in a class) from container properties (multiply-valued attributes).
The BMM_PROPERTY meta-type defines semantics common to all properties, including is_composition, which indicates whether the property reference instantiates a part-of relationship or an association.
Unitary versus Container Properties
Single-valued properties in a BMM model are instances of the type BMM_UNITARY_PROPERTY, and have as their type the meta-type BMM_UNITARY_TYPE. Container properties are instances of the meta-type BMM_CONTAINER_PROPERTY, which adds the attribute cardinality, enabling the possible number of container elements to be constrained (this corresponds to the multiplicities used at the end of UML associations). The meta-type BMM_INDEXED_CONTAINER_PROPERTY adds the attribute index_type, enabling representation of indexed concrete container types such as Hash<K,V> etc.

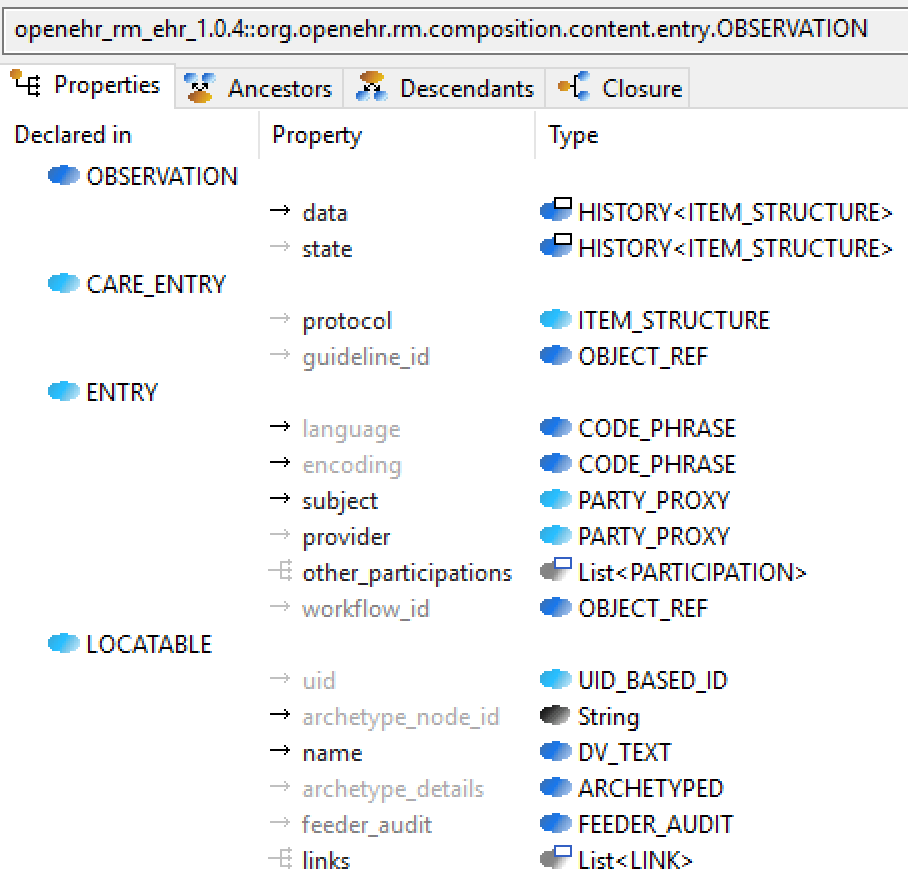

A typical example of properties of class is shown below, in which the flattened property view of a class OBSERVATION includes the inherited properties other_participations and links properties exemplifying the container property meta-type:
The following illustrates how various kinds of properties may appear in a BMM model. The first two properties are associations, used to represent references to shared objects (including singletons), while the remainder are normal compositional sub-parts, i.e. owned sub-instances that will cease to exist when the parent object is destroyed. All of the properties are single-valued, other than other_participations, which is defined as a container property with cardinality [*] (i.e. 0..*) and 'set' semantics.
abstract class ENTRY extend CARE_ENTRY
feature -- Locale
association property language: CODE_PHRASE <<"iso::iso_639-2">> [0..1];
association property encoding: CODE_PHRASE <<"iana::character-sets">> [0..1];
feature -- Access
composition property protocol: ITEM_STRUCTURE[1];
composition property guideline_id: OBJECT_REF[0..1];
composition property subject: PARTY_PROXY[0..1];
composition property other_participations: PARTICIPATION[*]{set};Semantic Level
TBD: this BMM feature requires review
Properties also include two other Boolean meta-data items, is_im_runtime and is_im_infrastructure, which can be used to classify property values in a model according to a 'semantic level', which roughly corresponds to the continuum from domain-specific to infrastructure. These may be individually set, or both may be False. The three meaningful value settings are as follows:
-
both False: the value of the property is considered to be design-time constrainable;
-
is IM runtime: True if the property value is only knowable at runtime, as is typically the case for identifiers, dates etc;
-
is infrastructure: True if the property is not a user- or business-oriented property, but something required by software design, e.g instance identifier, meta-data etc.
The above screenshot also includes properties have different settings of the is_im_runtime and is_im_infrastructure meta-data flags: property names in black are neither; those in grey are IM runtime (guideline_id, workflow_id), and those in light grey are infrastructure properties (language, encoding, uid, etc).
Functions and Procedures
Functions and procedures are kinds of routine, which are computational features of a class. The classes BMM_FUNCTION, BMM_PROCEDURE and BMM_ROUTINE respectively provide the meta-model for definitions of the two types of routine.
The formal parameter definitions of both kinds of routines are represented by an ordered list of instances of the meta-class BMM_PARAMETER, which is defined as a kind of variable. A formal parameter may optionally have the read/write direction defined, which indicates whether the variable contains an input value, should only be written to, or both, i.e. read then written to. The is_nullable meta-attribute inherited from BMM_FEATURE indicates whether each parameter is mandatory or not.
An additional feature of the meta-model for functions is the notion of operator, which supports the representation of a function call in a formal expression as an operator symbol with one or two operands, in the typical form found in programming languages and first order logics. The BMM approach considers an operator as an optional addition to any function of arity 1 or 2 that may reasonably be represented in an abstract syntax using operator syntax. Operators thus support the use of expressions like weight > 90 to mean weight.gt (90), where weight is of type Real, and the function gt(other: Real) is defined.
Any routine may have pre- and/or post-conditions defined for it, represented in BMM by BMM_ASSERTIONs populating the pre_conditions and post_conditions attributes of BMM_ROUINE. An Assertion is a tagged Boolean Expression.
The following abstract syntax illustrates the various elements of function definitions.
abstract class DV_AMOUNT
inherit
DV_QUANTIFIED
feature -- Arithmetic Operations
function equal (other: DV_AMOUNT[1]): Boolean[1]
alias {infix '='};
function less_than (other: DV_AMOUNT[1]): Boolean[1]
alias {infix '<'};
feature -- Arithmetic Operations
function add (other: DV_AMOUNT[1]): DV_AMOUNT[1]
alias {infix '+'};
function subtract (other: DV_AMOUNT[1]): DV_AMOUNT[1]
alias {infix '-'};
function multiply (val: Real[1]): DV_AMOUNT[1]
alias {infix '*'};
function divide (val: Real[1]): DV_AMOUNT[1]
alias {infix '/', infix '÷'};Pre- and Post-conditions
All BMM routine definitions may include pre- and/or post-conditions, with the semantics of Djikstra’s weakest pre-condition logic ([1]), Object-Z ([2]) and the Eiffel language ([3]).
The essential semantics are as follows:
-
pre-conditions specify truth conditions on public object state and/or parameters that must hold for the routine to execute correctly;
-
if a pre-condition is not met at the moment of routine call, the client (caller) is at fault;
-
-
post-conditions specify truth conditions on public object state and/or result (in the case of functions) that will hold at the end of routine execution;
-
if a post-condition is not met at the moment of routine completion, the routine is at fault, i.e. contains bugs.
-
The use of pre- and post-conditions is also known as design by contract (DbC), a term introduced by Meyer, and is widely used in general IT, particularly in specification languages such as OMG Interface Definition Language (IDL).
The following shows how a routine contract may be specified in an abstract syntax.
class I_EHR_SERVICE
feature -- Creation
create_ehr_with_id (
an_ehr_id: UUID[1];
an_ehr_status: EHR_STATUS[0..1]
): UUID[1]
pre_condition
No_duplicate: not has_ehr (an_ehr_id)
post_condition
Has_ehr: has_ehr (Result)Creators and Converters
In common with may OOPLs, BMM classes may specify creators, i.e. instance-creating procedures, known as 'constructors' in some OOPLs. These are just a subset of all procedures known in BMM_CLASS.procedures that when executed will satisfy the class invariants. A further subset of the creators are single-argument converters which can initialise a new instance from an instance of another type. Converter routines are typically used to support type conversion in expressions, e.g. String to Date etc. These two subsets are formally defined as the creators and converters reference lists of procedures on BMM_CLASS, as shown in the following UML view.
Creators and converters might be distinguished among other procedures in an abstract syntax as follows.
class Date
inherit
Temporal
convert
create_from_string
feature -- Creators
procedure create_from_string (a_date_str: String[1])
procedure create (a_day, a_month, a_year: Integer[1])
feature -- Modification
procedure set_day (a_day: Integer[1])Routine Body
BMM supports the definition of statements, i.e. implementation within a ROUTINE as well as 'external' routines, which are represented by an instance of the meta-class BMM_ROUTINE_EXTERNAL. These classes are shown in the following UML view.
The meta-model of statements is described in detail in [_statements].
Variables
At the finest level of detail of a model definition are what are typically thought of as variables within a routine scope. These may be either writable (BMM_WRITABLE_VARIABLE) or read-only (BMM_READONlY_VARIABLE) variables.
Writable variables include local variables (variables declared locally within a routine) and the special pre-defined variable Result, which is automatically available within any function. Read-only variables include parameters (declared in the arguments part of a routine declaration), and the special variable Self, which represents the current instance.
Model Theoretic Questions
The features meta-model as defined here entails certain choices that have consequences. One question is how to treat procedures. In a mathematical sense, procedures have no return type, and therefore should not be allowed within 'normal' expressions. However in a computational sense, a procedure call normally performs some state-changing action (for example, authenticating to a database), and it is potentially useful to obtain an execution status and use it in further logic. The choice made in BMM is to treat procedures as typed entities, with a result meta-type and concrete type of Status (represented by BMM_STATUS_TYPE). This is similar to the approach in various languages such as Haskell and Kotlin, which both have a 'unit' type for the same purpose. This approach allows procedures to fit within the typed framework without complicating the meta-model.
Procedure calls are prevented from appearing in expressions by the expressions part of the meta-model, and can only appear on their own (the usual case) or in an assignment statement in which a result status value may be obtained from the Status object. This value may then be used in normal expressions, e.g. a case statement.
Class Definitions
BMM_FEATURE_GROUP Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_FEATURE_GROUP |
|
|---|---|---|
Description |
A logical group of features, with a name and set of properties that applies to the group. |
|
Attributes |
Signature |
Meaning |
1..1 |
name: |
Name of this feature group; defaults to 'feature'. |
1..1 |
Set of properties of this group, represented as name/value pairs. These are understood to apply logically to all of the features contained within the group. |
|
0..1 |
features: |
Set of features in this group. |
0..1 |
visibility: |
Optional visibility to apply to all features in this group. |
| BMM_FEATURE_GROUP | |
|---|---|
A logical group of features, with a name and set of properties that applies to the group. |
|
Attributes |
|
name: |
Name of this feature group; defaults to 'feature'. |
Set of properties of this group, represented as name/value pairs. These are understood to apply logically to all of the features contained within the group. |
|
features: |
Set of features in this group. |
visibility: |
Optional visibility to apply to all features in this group. |
{
"name": "BMM_FEATURE_GROUP",
"documentation": "A logical group of features, with a name and set of properties that applies to the group. ",
"properties": {
"name": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "name",
"documentation": "Name of this feature group; defaults to 'feature'.",
"is_mandatory": true,
"type": "String",
"default": "\"feature\""
},
"properties": {
"_type": "P_BMM_GENERIC_PROPERTY",
"name": "properties",
"documentation": "Set of properties of this group, represented as name/value pairs. These are understood to apply logically to all of the features contained within the group.",
"is_mandatory": true,
"type_def": {
"root_type": "Hash",
"generic_parameters": [
"String",
"String"
]
}
},
"features": {
"_type": "P_BMM_CONTAINER_PROPERTY",
"name": "features",
"documentation": "Set of features in this group.",
"type_def": {
"container_type": "List",
"type": "BMM_CLASS_FEATURE"
},
"cardinality": {
"lower": 0,
"upper_unbounded": true
}
},
"visibility": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "visibility",
"documentation": "Optional visibility to apply to all features in this group.",
"type": "BMM_VISIBILITY"
}
}
}
BMM_VISIBILITY Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_VISIBILITY (abstract) |
|
|---|---|---|
Description |
Abstract parent of visibility representation. TODO: define schemes; probably need to support C++/Java scheme as well as better type-based schemes. |
|
| BMM_VISIBILITY (abstract) | |
|---|---|
Abstract parent of visibility representation. TODO: define schemes; probably need to support C++/Java scheme as well as better type-based schemes. |
{
"name": "BMM_VISIBILITY",
"documentation": "Abstract parent of visibility representation.\n\nTODO: define schemes; probably need to support C++/Java scheme as well as better type-based schemes.",
"is_abstract": true
}
BMM_CONSTANT Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_CONSTANT |
|
|---|---|---|
Description |
An immutable, static value-returning element scoped to a class. The |
|
Inherit |
||
Attributes |
Signature |
Meaning |
1..1 |
generator: |
Generator expression for the constant value. In the degenerate case, this is just a literal value, but may also be any other expression valid in the context. |
Invariants |
Inv_not_nullable: |
|
| BMM_CONSTANT | |
|---|---|
An immutable, static value-returning element scoped to a class. The |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_INSTANTIABLE, BMM_CLASS_FEATURE |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
generator: |
Generator expression for the constant value. In the degenerate case, this is just a literal value, but may also be any other expression valid in the context. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
(abstract) signature (): |
Formal signature of this element, in the form:
Specific implementations in descendants. |
Invariants |
|
Inv_not_nullable: |
|
{
"name": "BMM_CONSTANT",
"documentation": "An immutable, static value-returning element scoped to a class. The `_value_` is the result of the evaluation of the `_generator_`, which may be as simple as a literal value, or may be any expression, including a function call.",
"ancestors": [
"BMM_INSTANTIABLE",
"BMM_CLASS_FEATURE"
],
"properties": {
"generator": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "generator",
"documentation": "Generator expression for the constant value. In the degenerate case, this is just a literal value, but may also be any other expression valid in the context.",
"is_mandatory": true,
"type": "EL_INSTANCE_REF"
}
},
"invariants": {
"Inv_not_nullable": "is_nullable = False"
}
}
BMM_PROPERTY Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_PROPERTY (abstract) |
|
|---|---|---|
Description |
Meta-type of a property definition within a class definition of an object model. The |
|
Inherit |
||
Attributes |
Signature |
Meaning |
0..1 |
is_im_runtime: |
True if this property is marked with info model |
0..1 |
is_im_infrastructure: |
True if this property was marked with info model |
0..1 |
is_composition: |
True if this property instance is a compositional sub-part of the owning class instance. Equivalent to 'composition' in UML associations (but missing from UML properties without associations) and also 'cascade-delete' semantics in ER schemas. |
Functions |
Signature |
Meaning |
1..1 |
existence (): `Multiplicity_interval ` |
Interval form of |
1..1 |
display_name (): `String ` |
Name of this property to display in UI. |
Invariants |
Inv_signature_no_args: |
|
| BMM_PROPERTY (abstract) | |
|---|---|
Meta-type of a property definition within a class definition of an object model. The |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_INSTANTIABLE, BMM_CLASS_FEATURE |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
is_im_runtime: |
True if this property is marked with info model |
is_im_infrastructure: |
True if this property was marked with info model |
is_composition: |
True if this property instance is a compositional sub-part of the owning class instance. Equivalent to 'composition' in UML associations (but missing from UML properties without associations) and also 'cascade-delete' semantics in ER schemas. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
(abstract) signature (): |
Formal signature of this element, in the form:
Specific implementations in descendants. |
existence (): `Multiplicity_interval ` [1..1] |
Interval form of |
display_name (): `String ` [1..1] |
Name of this property to display in UI. |
Invariants |
|
Inv_signature_no_args: |
|
{
"name": "BMM_PROPERTY",
"documentation": "Meta-type of a property definition within a class definition of an object model. The `_is_composition_` attribute indicates whether the property has sub-part or an association semantics with respect to the owning class.",
"is_abstract": true,
"ancestors": [
"BMM_INSTANTIABLE",
"BMM_CLASS_FEATURE"
],
"properties": {
"is_im_runtime": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "is_im_runtime",
"documentation": "True if this property is marked with info model `_im_runtime_` property.",
"type": "Boolean",
"default": false
},
"is_im_infrastructure": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "is_im_infrastructure",
"documentation": "True if this property was marked with info model `_im_infrastructure_` flag.",
"type": "Boolean",
"default": false
},
"is_composition": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "is_composition",
"documentation": "True if this property instance is a compositional sub-part of the owning class instance. Equivalent to 'composition' in UML associations (but missing from UML properties without associations) and also 'cascade-delete' semantics in ER schemas.",
"type": "Boolean",
"default": false
}
},
"functions": {
"existence": {
"name": "existence",
"documentation": "Interval form of `0..1`, `1..1` etc, derived from `_is_nullable_`.",
"result": {
"_type": "P_BMM_SIMPLE_TYPE",
"type": "Multiplicity_interval"
}
},
"display_name": {
"name": "display_name",
"documentation": "Name of this property to display in UI.",
"result": {
"_type": "P_BMM_SIMPLE_TYPE",
"type": "String"
}
}
},
"invariants": {
"Inv_signature_no_args": "signature.arguments = Void"
}
}
BMM_UNITARY_PROPERTY Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_UNITARY_PROPERTY |
|
|---|---|---|
Description |
Meta-type of for properties of unitary type. |
|
Inherit |
||
Attributes |
Signature |
Meaning |
1..1 |
type: |
Declared or inferred static type of the entity. |
| BMM_UNITARY_PROPERTY | |
|---|---|
Meta-type of for properties of unitary type. |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_INSTANTIABLE, BMM_CLASS_FEATURE, BMM_PROPERTY |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
is_im_runtime: |
True if this property is marked with info model |
is_im_infrastructure: |
True if this property was marked with info model |
is_composition: |
True if this property instance is a compositional sub-part of the owning class instance. Equivalent to 'composition' in UML associations (but missing from UML properties without associations) and also 'cascade-delete' semantics in ER schemas. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
(abstract) signature (): |
Formal signature of this element, in the form:
Specific implementations in descendants. |
existence (): `Multiplicity_interval ` [1..1] |
Interval form of |
display_name (): `String ` [1..1] |
Name of this property to display in UI. |
Invariants |
|
Inv_signature_no_args: |
|
{
"name": "BMM_UNITARY_PROPERTY",
"documentation": "Meta-type of for properties of unitary type.",
"ancestors": [
"BMM_PROPERTY"
],
"properties": {
"type": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "type",
"documentation": "Declared or inferred static type of the entity.",
"is_mandatory": true,
"type": "BMM_UNITARY_TYPE"
}
}
}
BMM_CONTAINER_PROPERTY Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_CONTAINER_PROPERTY |
|
|---|---|---|
Description |
Meta-type of for properties of linear container type, such as List<T> etc. |
|
Inherit |
||
Attributes |
Signature |
Meaning |
0..1 |
cardinality: `Multiplicity_interval ` |
Cardinality of this container. |
1..1 |
type: |
Declared or inferred static type of the entity. |
Functions |
Signature |
Meaning |
1..1 |
display_name (): `String ` |
Name of this property in form |
| BMM_CONTAINER_PROPERTY | |
|---|---|
Meta-type of for properties of linear container type, such as List<T> etc. |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_INSTANTIABLE, BMM_CLASS_FEATURE, BMM_PROPERTY |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
is_im_runtime: |
True if this property is marked with info model |
is_im_infrastructure: |
True if this property was marked with info model |
is_composition: |
True if this property instance is a compositional sub-part of the owning class instance. Equivalent to 'composition' in UML associations (but missing from UML properties without associations) and also 'cascade-delete' semantics in ER schemas. |
cardinality: `Multiplicity_interval ` [0..1] |
Cardinality of this container. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
(abstract) signature (): |
Formal signature of this element, in the form:
Specific implementations in descendants. |
existence (): `Multiplicity_interval ` [1..1] |
Interval form of |
display_name (): `String ` [1..1] |
Name of this property in form |
Invariants |
|
Inv_signature_no_args: |
|
{
"name": "BMM_CONTAINER_PROPERTY",
"documentation": "Meta-type of for properties of linear container type, such as List<T> etc.",
"ancestors": [
"BMM_PROPERTY"
],
"properties": {
"cardinality": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "cardinality",
"documentation": "Cardinality of this container.",
"type": "Multiplicity_interval"
},
"type": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "type",
"documentation": "Declared or inferred static type of the entity.",
"is_mandatory": true,
"type": "BMM_CONTAINER_TYPE"
}
},
"functions": {
"display_name": {
"name": "display_name",
"documentation": "Name of this property in form `name: ContainerTypeName<>`.",
"result": {
"_type": "P_BMM_SIMPLE_TYPE",
"type": "String"
}
}
}
}
BMM_INDEXED_CONTAINER_PROPERTY Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_INDEXED_CONTAINER_PROPERTY |
|
|---|---|---|
Description |
Meta-type of for properties of linear container type, such as |
|
Inherit |
||
Attributes |
Signature |
Meaning |
1..1 |
Declared or inferred static type of the entity. |
|
Functions |
Signature |
Meaning |
1..1 |
display_name (): `String ` |
Name of this property in form |
| BMM_INDEXED_CONTAINER_PROPERTY | |
|---|---|
Meta-type of for properties of linear container type, such as |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_INSTANTIABLE, BMM_CLASS_FEATURE, BMM_PROPERTY, BMM_CONTAINER_PROPERTY |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
is_im_runtime: |
True if this property is marked with info model |
is_im_infrastructure: |
True if this property was marked with info model |
is_composition: |
True if this property instance is a compositional sub-part of the owning class instance. Equivalent to 'composition' in UML associations (but missing from UML properties without associations) and also 'cascade-delete' semantics in ER schemas. |
cardinality: `Multiplicity_interval ` [0..1] |
Cardinality of this container. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
(abstract) signature (): |
Formal signature of this element, in the form:
Specific implementations in descendants. |
existence (): `Multiplicity_interval ` [1..1] |
Interval form of |
display_name (): `String ` [1..1] |
Name of this property in form |
Invariants |
|
Inv_signature_no_args: |
|
{
"name": "BMM_INDEXED_CONTAINER_PROPERTY",
"documentation": "Meta-type of for properties of linear container type, such as `Hash<Index_type, T>` etc.",
"ancestors": [
"BMM_CONTAINER_PROPERTY"
],
"properties": {
"type": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "type",
"documentation": "Declared or inferred static type of the entity.",
"is_mandatory": true,
"type": "BMM_INDEXED_CONTAINER_TYPE"
}
},
"functions": {
"display_name": {
"name": "display_name",
"documentation": "Name of this property in form `name: ContainerTypeName<IndexTypeName, ...>`.",
"result": {
"_type": "P_BMM_SIMPLE_TYPE",
"type": "String"
}
}
}
}
BMM_ROUTINE Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_ROUTINE (abstract) |
|
|---|---|---|
Description |
A feature defining a routine, scoped to a class. |
|
Inherit |
||
Attributes |
Signature |
Meaning |
0..1 |
parameters: |
Formal parameters of the routine. |
0..1 |
Local variables of the routine. |
|
0..1 |
pre_conditions: |
|
0..1 |
post_conditions: |
|
0..1 |
body: |
Body of a routine, i.e. executable program. |
Functions |
Signature |
Meaning |
1..1 |
arity (): `Integer ` |
Return number of arguments of this routine. |
1..1 |
signature (): `/classes/ ` |
Formal signature of this element, in the form
|
| BMM_ROUTINE (abstract) | |
|---|---|
A feature defining a routine, scoped to a class. |
|
Inherits: BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_CLASS_FEATURE |
|
Attributes |
|
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
parameters: |
Formal parameters of the routine. |
Local variables of the routine. |
|
pre_conditions: |
|
post_conditions: |
|
body: |
Body of a routine, i.e. executable program. |
Functions |
|
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
signature (): `/classes/ ` [1..1] |
Formal signature of this element, in the form
|
arity (): `Integer ` [1..1] |
Return number of arguments of this routine. |
{
"name": "BMM_ROUTINE",
"documentation": "A feature defining a routine, scoped to a class.",
"is_abstract": true,
"ancestors": [
"BMM_CLASS_FEATURE"
],
"properties": {
"parameters": {
"_type": "P_BMM_CONTAINER_PROPERTY",
"name": "parameters",
"documentation": "Formal parameters of the routine.",
"type_def": {
"container_type": "List",
"type": "BMM_PARAMETER"
},
"cardinality": {
"lower": 0,
"upper_unbounded": true
}
},
"locals": {
"_type": "P_BMM_CONTAINER_PROPERTY",
"name": "locals",
"documentation": "Local variables of the routine.",
"type_def": {
"container_type": "List",
"type": "BMM_LOCAL"
},
"cardinality": {
"lower": 0,
"upper_unbounded": true
}
},
"pre_conditions": {
"_type": "P_BMM_CONTAINER_PROPERTY",
"name": "pre_conditions",
"type_def": {
"container_type": "List",
"type": "BMM_ASSERTION"
},
"cardinality": {
"lower": 0,
"upper_unbounded": true
}
},
"post_conditions": {
"_type": "P_BMM_CONTAINER_PROPERTY",
"name": "post_conditions",
"type_def": {
"container_type": "List",
"type": "BMM_ASSERTION"
},
"cardinality": {
"lower": 0,
"upper_unbounded": true
}
},
"body": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "body",
"documentation": "Body of a routine, i.e. executable program.",
"type": "BMM_ROUTINE_BODY"
}
},
"functions": {
"arity": {
"name": "arity",
"documentation": "Return number of arguments of this routine.",
"result": {
"_type": "P_BMM_SIMPLE_TYPE",
"type": "Integer"
}
},
"signature": {
"name": "signature",
"documentation": "Formal signature of this element, in the form\n\n`'[arg1_name: T_arg1, ...]:T_value'`.",
"result": {
"_type": "P_BMM_SIMPLE_TYPE",
"type": ""
}
}
}
}
BMM_FUNCTION Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_FUNCTION |
|
|---|---|---|
Description |
A formal element with signature of the form: |
|
Inherit |
||
Attributes |
Signature |
Meaning |
0..1 |
operator_definition: |
Optional details enabling a function to be represented as an operator in a syntactic representation. |
1..1 |
result: |
Automatically created Result variable, usable in body and post-condition. |
Invariants |
Operator_validity: |
|
Inv_signature_has_result: |
||
Inv_result_type: |
||
| BMM_FUNCTION | |
|---|---|
A formal element with signature of the form: |
|
Inherits: BMM_TYPED, BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_CLASS_FEATURE, BMM_TYPED_FEATURE, BMM_ROUTINE |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
parameters: |
Formal parameters of the routine. |
Local variables of the routine. |
|
pre_conditions: |
+ Inherited from BMM_ROUTINE |
post_conditions: |
+ Inherited from BMM_ROUTINE |
body: |
Body of a routine, i.e. executable program. |
operator_definition: |
Optional details enabling a function to be represented as an operator in a syntactic representation. |
result: |
Automatically created Result variable, usable in body and post-condition. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
signature (): `/classes/ ` [1..1] |
Formal signature of this element, in the form
|
arity (): `Integer ` [1..1] |
Return number of arguments of this routine. |
Invariants |
|
Operator_validity: |
|
Inv_signature_has_result: |
|
Inv_result_type: |
|
{
"name": "BMM_FUNCTION",
"documentation": "A formal element with signature of the form: `name ({arg:TArg}*):TResult`. A function is a computed (rather than data) element, generally assumed to be non-state-changing.",
"ancestors": [
"BMM_TYPED_FEATURE",
"BMM_ROUTINE"
],
"properties": {
"operator_definition": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "operator_definition",
"documentation": "Optional details enabling a function to be represented as an operator in a syntactic representation.",
"type": "BMM_OPERATOR"
},
"result": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "result",
"documentation": "Automatically created Result variable, usable in body and post-condition.",
"is_mandatory": true,
"type": "BMM_RESULT"
}
},
"invariants": {
"Operator_validity": "operator_def /= Void implies arity in |1..2|",
"Inv_signature_has_result": "signature.result /= Void",
"Inv_result_type": "type = Result.type"
}
}
BMM_OPERATOR Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_OPERATOR |
|
|---|---|---|
Description |
Definition of a symbolic operator associated with a function. |
|
Attributes |
Signature |
Meaning |
1..1 |
position: |
Position of operator in syntactic representation. |
1..1 |
Set of |
|
1..1 |
name: `String ` |
Formal name of the operator, e.g. 'minus' etc. |
| BMM_OPERATOR | |
|---|---|
Definition of a symbolic operator associated with a function. |
|
Attributes |
|
position: |
Position of operator in syntactic representation. |
Set of |
|
name: `String ` [1..1] |
Formal name of the operator, e.g. 'minus' etc. |
{
"name": "BMM_OPERATOR",
"documentation": "Definition of a symbolic operator associated with a function.",
"properties": {
"position": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "position",
"documentation": "Position of operator in syntactic representation.",
"is_mandatory": true,
"type": "BMM_OPERATOR_POSITION"
},
"symbols": {
"_type": "P_BMM_CONTAINER_PROPERTY",
"name": "symbols",
"documentation": "Set of `String` symbols that may be used to represent this operator in a textual representation of a BMM model.",
"is_mandatory": true,
"type_def": {
"container_type": "List",
"type": "String"
},
"cardinality": {
"lower": 1,
"upper_unbounded": true
}
},
"name": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "name",
"documentation": "Formal name of the operator, e.g. 'minus' etc.",
"is_mandatory": true,
"type": "String"
}
}
}
BMM_OPERATOR_POSITION Enumeration
-
Definition
-
Effective
-
BMM
-
UML
Enumeration |
BMM_OPERATOR_POSITION |
|
|---|---|---|
Description |
Enumeration of possible position of operator in a syntactic representation for operators associated with 1- and 2- degree functions. |
|
Constants |
Signature |
Meaning |
prefix |
Prefix operator position: operator comes before operand. |
|
infix |
Infix operator position: operator comes between left and right operands. |
|
| BMM_OPERATOR_POSITION | |
|---|---|
Enumeration of possible position of operator in a syntactic representation for operators associated with 1- and 2- degree functions. |
|
Inherits: String |
|
Constants |
|
prefix |
Prefix operator position: operator comes before operand. |
infix |
Infix operator position: operator comes between left and right operands. |
{
"_type": "P_BMM_ENUMERATION_STRING",
"name": "BMM_OPERATOR_POSITION",
"documentation": "Enumeration of possible position of operator in a syntactic representation for operators associated with 1- and 2- degree functions.",
"ancestors": [
"String"
],
"item_names": [
"prefix",
"infix"
],
"item_documentations": [
"Prefix operator position: operator comes before operand.",
"Infix operator position: operator comes between left and right operands."
]
}
BMM_PROCEDURE Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_PROCEDURE |
|
|---|---|---|
Description |
A formal element with signature of the form: |
|
Inherit |
||
Invariants |
Inv_signature_no_result: |
|
| BMM_PROCEDURE | |
|---|---|
A formal element with signature of the form: |
|
Inherits: BMM_DECLARATION, BMM_CLASS_ENTITY, BMM_CLASS_FEATURE, BMM_ROUTINE |
|
Attributes |
|
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Class within which a referenceable element is known. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
visibility: |
Visibility of this item to client entities. |
feature_extensions: |
Extensions to feature-level meta-types. |
group: |
Group containing this feature. |
parameters: |
Formal parameters of the routine. |
Local variables of the routine. |
|
pre_conditions: |
+ Inherited from BMM_ROUTINE |
post_conditions: |
+ Inherited from BMM_ROUTINE |
body: |
Body of a routine, i.e. executable program. |
Functions |
|
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
signature (): `/classes/ ` [1..1] |
Formal signature of this element, in the form
|
arity (): `Integer ` [1..1] |
Return number of arguments of this routine. |
Invariants |
|
Inv_signature_no_result: |
|
{
"name": "BMM_PROCEDURE",
"documentation": "A formal element with signature of the form: `name ({arg:TArg}*)`. A procedure is a computed (rather than data) element, generally assumed to be state-changing.",
"ancestors": [
"BMM_ROUTINE"
],
"invariants": {
"Inv_signature_no_result": "signature.result = Void"
}
}
BMM_VARIABLE Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_VARIABLE (abstract) |
|
|---|---|---|
Description |
A mutable entity whose scope is a routine. |
|
Inherit |
||
Attributes |
Signature |
Meaning |
1..1 |
scope: |
Routine within which variable is defined. |
Functions |
Signature |
Meaning |
1..1 |
signature (): `/classes/ ` |
Formal signature of this element, in the form |
| BMM_VARIABLE (abstract) | |
|---|---|
A mutable entity whose scope is a routine. |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_INSTANTIABLE, BMM_CLASS_ENTITY |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Routine within which variable is defined. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
signature (): `/classes/ ` [1..1] |
Formal signature of this element, in the form |
{
"name": "BMM_VARIABLE",
"documentation": "A mutable entity whose scope is a routine.",
"is_abstract": true,
"ancestors": [
"BMM_INSTANTIABLE",
"BMM_CLASS_ENTITY"
],
"properties": {
"scope": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "scope",
"documentation": "Routine within which variable is defined.",
"is_mandatory": true,
"type": "BMM_ROUTINE"
}
},
"functions": {
"signature": {
"name": "signature",
"documentation": "Formal signature of this element, in the form `'name [arg1_name: T_arg1, ...][:T_value]'`.",
"result": {
"_type": "P_BMM_SIMPLE_TYPE",
"type": ""
}
}
}
}
BMM_LOCAL Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_LOCAL |
|
|---|---|---|
Description |
A routine local variable. |
|
Inherit |
||
| BMM_LOCAL | |
|---|---|
A routine local variable. |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_INSTANTIABLE, BMM_CLASS_ENTITY, BMM_VARIABLE |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Routine within which variable is defined. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
signature (): `/classes/ ` [1..1] |
Formal signature of this element, in the form |
{
"name": "BMM_LOCAL",
"documentation": "A routine local variable.",
"ancestors": [
"BMM_VARIABLE"
]
}
BMM_RESULT Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_RESULT |
|
|---|---|---|
Description |
Automatically declared variable representing result instance of a Function call. |
|
Inherit |
||
Attributes |
Signature |
Meaning |
1..1 |
name: |
Name of this model element. |
| BMM_RESULT | |
|---|---|
Automatically declared variable representing result instance of a Function call. |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_INSTANTIABLE, BMM_CLASS_ENTITY, BMM_VARIABLE |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Routine within which variable is defined. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
signature (): `/classes/ ` [1..1] |
Formal signature of this element, in the form |
{
"name": "BMM_RESULT",
"documentation": "Automatically declared variable representing result instance of a Function call.",
"ancestors": [
"BMM_VARIABLE"
],
"properties": {
"name": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "name",
"documentation": "Name of this model element.",
"is_mandatory": true,
"type": "String",
"default": "\"Result\""
}
}
}
BMM_PARAMETER Class
-
Definition
-
Effective
-
BMM
-
UML
Class |
BMM_PARAMETER |
|
|---|---|---|
Description |
A routine parameter variable. |
|
Inherit |
||
Attributes |
Signature |
Meaning |
0..1 |
direction: |
Optional read/write direction of the parameter. If none-supplied, the parameter is treated as |
| BMM_PARAMETER | |
|---|---|
A routine parameter variable. |
|
Inherits: BMM_TYPED, BMM_TYPED_FEATURE, BMM_DECLARATION, BMM_INSTANTIABLE, BMM_CLASS_ENTITY, BMM_VARIABLE |
|
Attributes |
|
type: |
Declared or inferred static type of the entity. |
is_nullable: |
True if this element can be null (Void) at execution time. May be interpreted as optionality in subtypes.. |
name: `String ` [1..1] |
Name of this model element. |
Optional documentation of this element, as a keyed list. It is strongly recommended to use the following key /type combinations for the relevant purposes:
Other keys and value types may be freely added. |
|
scope: |
Routine within which variable is defined. |
Optional meta-data of this element, as a keyed list. May be used to extend the meta-model. |
|
is_synthesised_generic: |
True if this feature was synthesised due to generic substitution in an inherited type, or further constraining of a formal generic parameter. |
direction: |
Optional read/write direction of the parameter. If none-supplied, the parameter is treated as |
Functions |
|
is_boolean (): |
True if |
is_root_scope (): |
True if this declaration entity is the root of the declaration hierarchy. |
signature (): `/classes/ ` [1..1] |
Formal signature of this element, in the form |
{
"name": "BMM_PARAMETER",
"documentation": "A routine parameter variable.",
"ancestors": [
"BMM_VARIABLE"
],
"properties": {
"direction": {
"_type": "P_BMM_SINGLE_PROPERTY",
"name": "direction",
"documentation": "Optional read/write direction of the parameter. If none-supplied, the parameter is treated as `in`, i.e. readable.",
"type": "BMM_PARAMETER_DIRECTION"
}
}
}
BMM_PARAMETER_DIRECTION Enumeration
-
Definition
-
Effective
-
BMM
-
UML
Enumeration |
BMM_PARAMETER_DIRECTION |
|
|---|---|---|
Description |
Enumeration of parameter read/write direction values. |
|
Constants |
Signature |
Meaning |
in |
Parameter is an input parameter, and treated as readonly by the receiving routine. |
|
out |
Parameter is an output parameter, and treated as a reference to an entity writeable by the receiving routine. |
|
in_out |
Parameter is an input and output parameter, and treated as a reference to an entity readable and writeable by the receiving routine. |
|
| BMM_PARAMETER_DIRECTION | |
|---|---|
Enumeration of parameter read/write direction values. |
|
Inherits: String |
|
Constants |
|
in |
Parameter is an input parameter, and treated as readonly by the receiving routine. |
out |
Parameter is an output parameter, and treated as a reference to an entity writeable by the receiving routine. |
in_out |
Parameter is an input and output parameter, and treated as a reference to an entity readable and writeable by the receiving routine. |
{
"_type": "P_BMM_ENUMERATION_STRING",
"name": "BMM_PARAMETER_DIRECTION",
"documentation": "Enumeration of parameter read/write direction values.",
"ancestors": [
"String"
],
"item_names": [
"in",
"out",
"in_out"
],
"item_documentations": [
"Parameter is an input parameter, and treated as readonly by the receiving routine.",
"Parameter is an output parameter, and treated as a reference to an entity writeable by the receiving routine.",
"Parameter is an input and output parameter, and treated as a reference to an entity readable and writeable by the receiving routine."
]
}
-
[1] E. W. Dijkstra, A discipline of programming. Prentice-Hall Englewood Cliffs, N.J, 1976.
-
[2] G. Smith, The Object Z Specification Language. Kluwer Academic Publishers, 2000. [Online]. Available: http://www.itee.uq.edu.au/~smith/objectz.html
-
[3] B. Meyer, Object-oriented Software Construction, Second. Prentice Hall, 1997.
